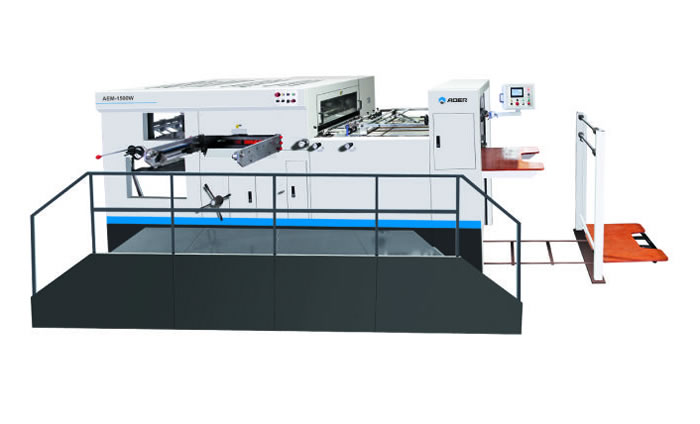

AME-1500W 半自动平压平模切机 (二次定位)


主要技术参数

最大纸张尺寸:                                                1500 x 1100 mm

最小纸张尺寸:                                                  440 x 470 mm

最大模切尺寸:                                                1490 x 1090 mm

版框内档尺寸:                                                1540 x 1100 mm

模切钢板尺寸:                                                1500 x 1100 mm

最小掉牙尺寸:                                                        <7 mm

模切工作精度:                                                   ≤±0.25 mm

最大模切压力:                                                     300 N/C㎡

最高模切速度:                                                       4800 s/h

输纸码堆高度:                                                        1300 mm

收纸码堆高度:                                                        1200 mm

纸张适应范围:

             白板纸:                                              0.25~2 mm

             瓦楞纸:                                                  8 mm

主电 功率:                                                         15 KW

     率:                                                       18.5 KW

机器外形尺寸:                             【长(+预堆纸)x宽(+脚踏台)x高】

             AEM-1500W:                     5250(+3100)x2600(+2200)x2550 mm

             AEM-1500WQ:                     6700(+3100)x2600(+2200)x2550 mm

AEM-1500W整机重量:                                                     18 T

AEM-1500WQ整机重量:                                                    20 T
