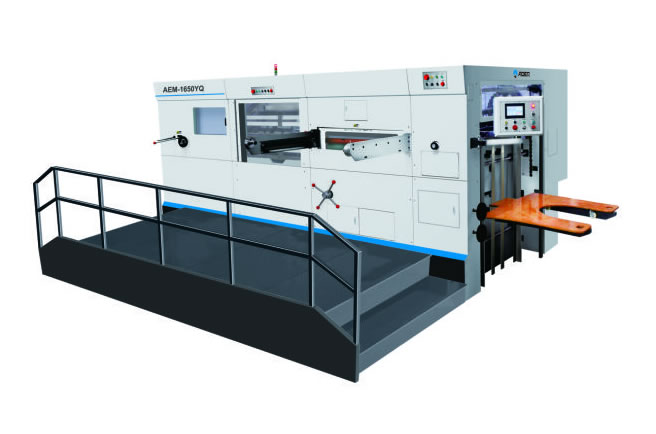

AEM-1650YQ 半全自动平压平清废模切机


主要技术参数



最大纸张尺寸:                                                  1670X1210 mm

最小纸张尺寸:                                                    520X460 mm

最大模切尺寸:                                                  1650X1200 mm

模切工作精度:                                                   ≤±0.25 mm

版框内挡尺寸:                                                  1660×1215 mm

模切钢板尺寸:                                                  1680×1186 mm

牙排 咬 纸边:(Min)                                                      7 mm

最大模切压力:                                                     300 N/C㎡

最高模切速度:                                                      4800 s/h

输纸码堆高度:                                                        1500 mm

收纸码堆高度:                                                        1300 mm

纸张适应范围:

             白板纸:                                               0.3~2 mm

             瓦楞纸:                                               ≤± 9 mm

主电 功率:                                                         15 KW

     率:                                                       18.5 KW

机器外形尺寸:                             【长(+预堆纸)x宽(+脚踏台)x高】

             AEM-1650Y:             4100(+3340) x 3000(+2300) x 2550 mm

             AEM-1650YQ:            5600(+3340) x 3000(+2300) x 2550 mm

AEM-1650Y整机重量:                                                     20 T

AEM-1650YQ整机重量:                                                    22 T
