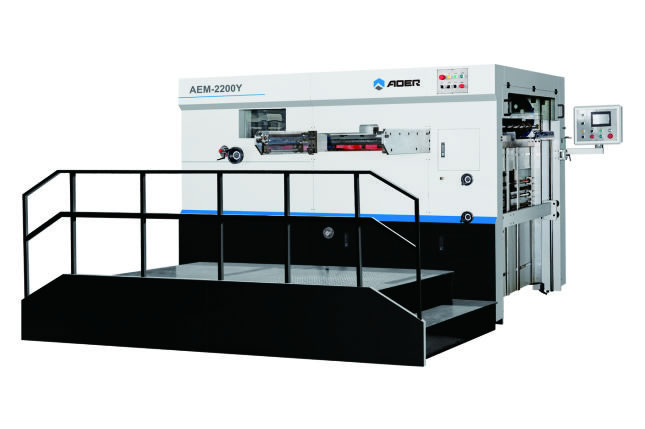

AEM-2200Y 半自动平压平模切机


主要技术参数



最大纸张尺寸:                                                  2200X1600 mm

最小纸张尺寸:                                                    800X600 mm

最大模切尺寸:                                                  2180X1580 mm

模切工作精度:                                                   ≤±0.3 mm

版框内挡尺寸:                                                  2222×1620 mm

模切钢板尺寸:                                                  2222×1600 mm

牙排 咬 纸边:(Min)                                                     10 mm

最大模切压力:                                                     500 N/C㎡

最高模切速度:                                                      4000 s/h

纸码堆高度:                                                        1600 mm

收纸码堆高度:                                                        1600 mm

纸张适应范围:

             瓦楞纸:                                                1—11 mm

主电 功率:                                                         37 KW

     率:                                                         50 KW

机器外形尺寸:                              【长(+踏台)x宽(+脚踏台)x高】

             AEM-2200Y:                  5500(+3500) x3700(+3300) x 3000 mm

             AEM-2200YQ:                 5500(+3500) x3700(+3300) x 3000 mm

AEM-2200Y整机重量:                                                     49 T

AEM-2200YQ整机重量:                                                    54 T
