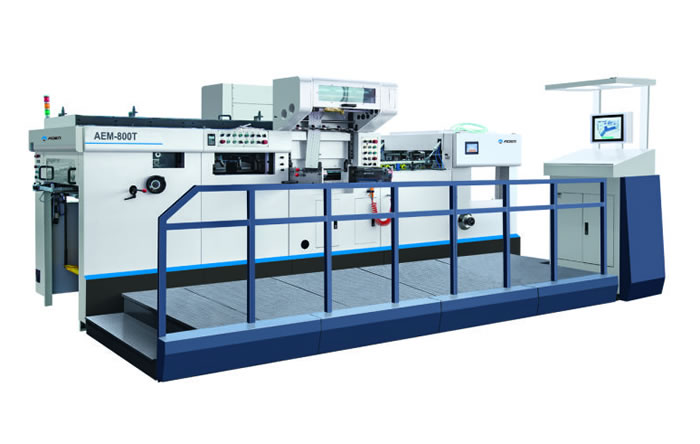

AEM-800ZHT Fully automatic Flat-bed die cutting and foil stamping machine



Max paper size:                                                  800 x 620 mm

Min paper size:                                                  340 x 280 mm

Max die cutting size:                                              770 x 600 mm

Chase inner size                                                  820 x 628 mm

Pressing plate size:                                               826 x 628 mm

Max stamping area:                                               780 x 600 mm

Min gripper margin:                                                      7 mm

Die cutting precision:                                                 ≤±0.1 mm

Foil stamping precision:                                             ≤±0.125 mm

Max cutting pressure:                                                     200 T

Max cutting speed:                                                    7000 S/H

Max stamping speed:                                                  6500 S/H

Max foil roll diameter:                                                 Φ250 mm

Horizontal foil width:                                                15~600 mm

Vertical foil width:                                                  15~780 mm

Horizontal foil:                                                          2 pce

Vertical foil:                                                             2 pce

Heating area:                                                            8 pce

Temperature range:                                                 50~199  ℃

Feeding stack height:                                                  1150 mm

Delivery stack height:                                                  1000 mm

Application:

          Card board:                                           0.1~2 mm

          Corrugated paper:                                         <4 mm

Main motor power:                                                     7.5 KW

Heating area power:                                                     16 KW

Total power:                                                           45 KW

Overall dimension:                               5150(+1360)x2200(+1300)x2260 mm

Weight:                                                                 10.5 T
