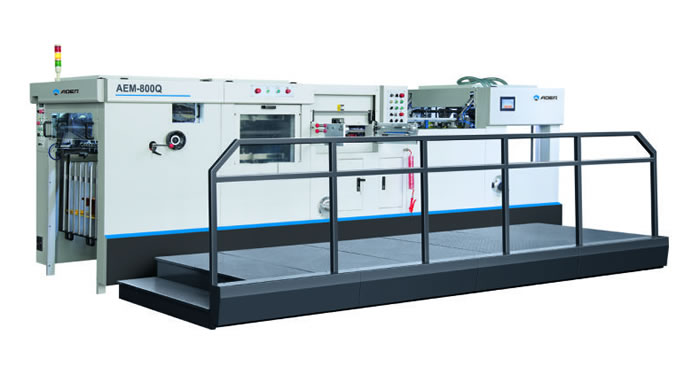

AEM-800Q Fully automatic flat-bed die cutting machine with waste stripping




Max paper size:                                                  800 x 620 mm

Min paper size:                                                  340 x280 mm

Max cutting size:                                                770 x 600 mm

Die frame inner size:                                             820 x 628 mm

Cutting plate size:                                                826 x 628 mm

Min gripper edge size:                                                  7 mm

Cutting precision:                                                    ≤±0.1 mm

Max cutting pressure:                                                    200 T

Max cutting speed:                                                    7000 S/H

Pre-stacking height:                                                   1150 mm

Delivery stack height:                                                 1000 mm

Application:

        Card board:                                                0.1~2 mm

        Corrugated paper:                                             <4 mm

Main motor power:                                                     7.5 KW

Total power:                                                         12.75 KW

Dimension :                                              5150(+1360) x 2000(+1300) x 1690 mm

Weight:                                                                   9.5 T
